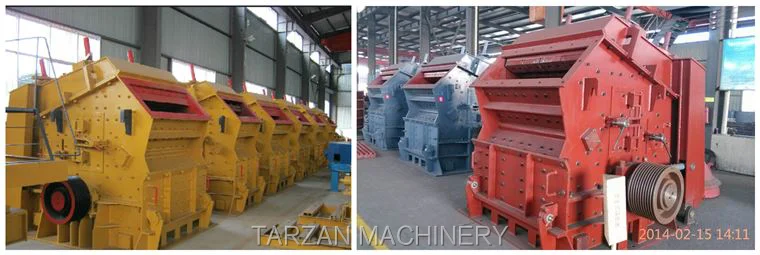

>BRIEF INTRODUCTION OF SHANGHAI PF IMPACT CRUSHER

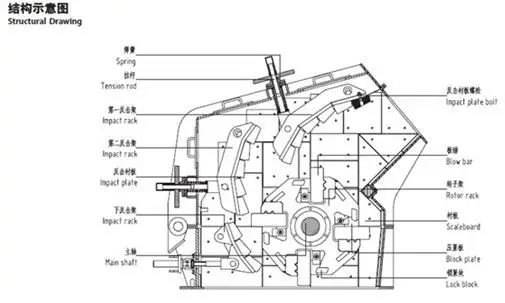

PF impact crusher is mainly made of chassis, rotor, impact rack and motor, etc. The rotor has a greater rotational inertia with low power consumption. It uses high chrome blow bar (Mn13, Cr2) which is shock resistance and wear resistance. By this way it extends the using life of wearing parts effectively. It is widely used in metallurgy, mining, cement, chemical industry, refractory, ceramics, highway, water conservancy project, building stone, and mechanism of sanding processing and so on.
It has been proved that this series of impact crusher not only effectively increase productivity and final product quality, but also greatly reduce the investment costs and operation costs. Unmatched excellent performance is shown in the secondary crushing, tertiary crushing and material recovery.artificial granite plant
PF impact crusher is mainly made of chassis, rotor, impact rack and motor, etc. The rotor has a greater rotational inertia with low power consumption. It uses high chrome blow bar (Mn13, Cr2) which is shock resistance and wear resistance. By this way it extends the using life of wearing parts effectively. It is widely used in metallurgy, mining, cement, chemical industry, refractory, ceramics, highway, water conservancy project, building stone, and mechanism of sanding processing and so on.
It has been proved that this series of impact crusher not only effectively increase productivity and final product quality, but also greatly reduce the investment costs and operation costs. Unmatched excellent performance is shown in the secondary crushing, tertiary crushing and material recovery.artificial granite plant
1. Designed according to the standard of highway/railway material using, nice shape, the content of flakiness<12%
2. High crushng capacity, widely application
3. Finished products are cubes without tension crack, nice granular shape, can comply with kinds of gravels'grade standard.
4. Simple structure, easy maintenance

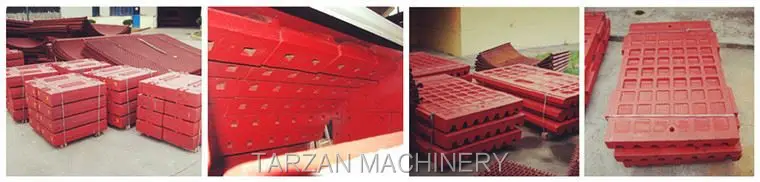

5. Equipped with hydraulic opening device, easy to replace the blow bar.

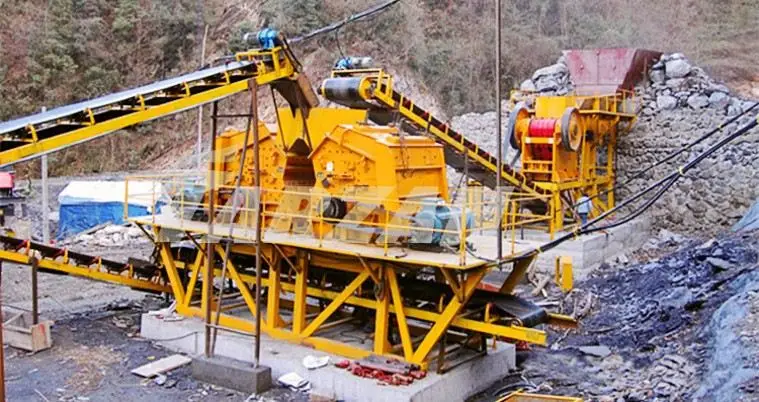

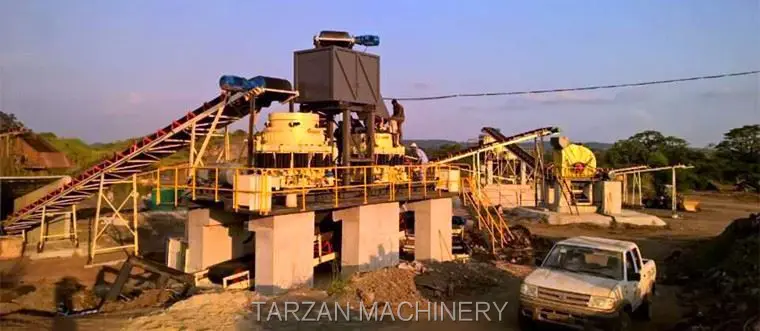

>CUSTOMER SITE PHOTOS OF SHANGHAI IMPACT CRUSHER
>WORK PRINCIPLE AND SPECIFICATION
The impact crusher crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the material will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed, then discharge from the discharge port. By adjusting the gap between the impact rack and rotor rack, we can change the finished material size and their shape.artificial granite plantSpecification:
| Model | Feed port size (mm×mm) | Max feed size (mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimensions (mm) |
| PF-1007 | 810x400 | 300 | 24-45 | 55 | 9.5 | 2400×1558×2660 |
| PF-1010 | 1080x400 | 350 | 50-80 | 75 | 10 | 2532×1985×2196 |
| PF-1210 | 1090×465 | 350 | 80-130 | 110 | 14 | 2638×2037×2713 |
| PF-1214 | 1440×465 | 350 | 100-160 | 132 | 18 | 2580×2400×2810 |
| PF-1315 | 1532×560 | 500 | 140-200 | 200 | 19.3 | 2840×2748×2556 |
| PF-1316 | 1640x880 | 500 | 150-220 | 200 | 19.5 | 3096×2850×2667 |
| PF-1515 | 1640x900 | 500 | 240-290 | 280 | 28.5 | 3553×2835×3277 |
